Quicksilver Class

The Quicksilver class exemplifies a modern aerodynamic style through a clean and elegant design. It is a thoughtful design with the sole purpose of maximizing airflow to improve cooling and performance. The Quicksilver line of graphics cards is XFX's performance line of graphics cards. Quicksilver model graphics cards have great cooling performance, as well as high overclocks and some of our most innovative features on select models.

Airflow and Aesthetics

With each iteration of the XFX Quicksilver class, we try to simplify the design while also improving thermal performance. Our nickel-plated copper cold plate, double ball bearing fans, and 6mm heatpipes all come together to give amazing cooler performance and thermal dissipation.

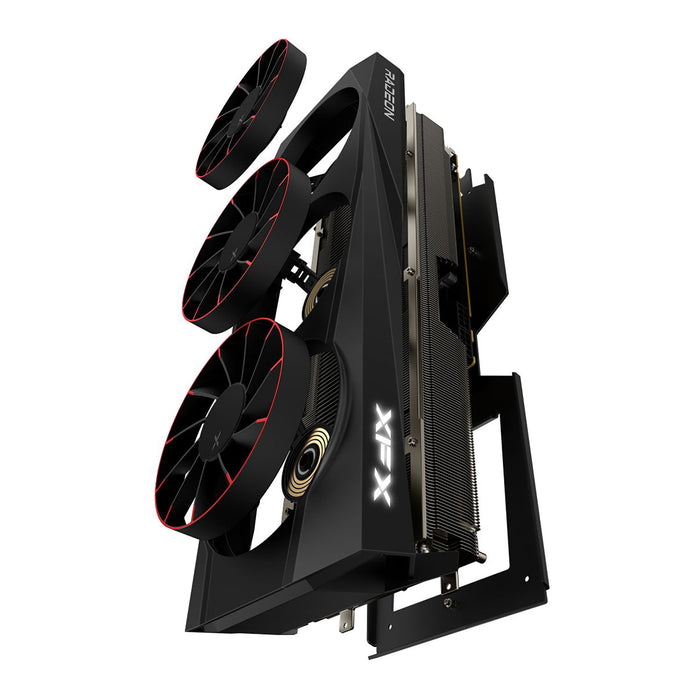

Magnetic Air Technology

The Magnetic Air fan hubs instantly lock into the GPU fan shroud frame with powerful magnets capable of supporting up to 1kg of weight. Once locked in Magnetic Air instantly sends both power and PWM data to the fans. Fan separation failures are now a thing of the past. Magnetic Air fans not only have improved longevity but also provide stable performance for the entire life of the fan.

Customizable Shroud

The 9000 Series Quicksilver Class GPUs feature customizable magnetic wings that can be easily removed and replaced to match your style and needs. 3D Printer Required - 3D files available in the downloads section.

AMD RDNA™ 4 Architecture

Built on the groundbreaking AMD RDNA™ 4 architecture with chiplet technology, AMD Radeon™ RX 9070 Series graphics deliver next-generation performance, visuals, and efficiency.

All You Need for Ultra-Fast Gaming

Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon™ RX 9000 Series Graphics Cards are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming resolutions. Activate AMD HYPR-RX to instantly enable all supported performance boosting and latency reducing technologies across thousands of your favorite games. Enjoy high-quality, AI-powered upscaling with AMD FidelityFX™ Super Resolution1, delivering an immersive gaming experience now and for years to come.

Superpowered Visuals Enhanced with AI

Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.

Instant Performance for Every Move

Take the instant performance of AMD Radeon™ to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX in one click to unleash the true potential of your Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution, AMD Fluid Motion Frames, AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. UX with dependable drivers and day zero game support will ensure game optimizations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.

AMD FidelityFX

AMD FidelityFX™ Super Resolution technology takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games. AMD Radeon™ Super Resolution (RSR) leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.

GDDR6 Memory

Equipped with 16GB of advanced GDDR6 memory to provide high bandwidth of up to 640 GB/s, the RX 9070 series gives amazing performance for today’s most demanding games.

PCIe® 5.0 Support

The AMD Radeon™ RX 9070 Series graphics cards feature PCIe® 5.0, with a throughput of 32 GT/s per lane, which enables two times the bandwidth compared to PCIe® 4.0.

500M+ Gamers

AMD powers most of today's newest consoles but also more Gaming PCs and Consoles are powered by AMD*. It's obvious what is the real choice when it comes to high performance graphics at a great value.

Windows 11 Ready

Windows® 11 is created for the ultimate PC gaming, featuring superior graphics, amazing speed, and an incredible selection of games. Windows 11 includes gaming features like DirectX® 12.

Specifications

Bus Type

PCI-E 5.0

Primary Clock Speeds

Base Clock Up To: 1660 MHz
Game Clock Up To: 2400 MHz
Boost Clock Up to: 2970 MHz

Performance

Stream Processors: 4096
Compute Units: 64
Memory Bus: 256bit
Memory Clock: 20 Gbps
Memory Size: 16 GB
Memory Bandwidth: Up to 640 GB/s
Effective Memory Bandwidth: Up to
Memory Type: GDDR6
Card Profile: 3.5 slot
Thermal Solution: 3 Fan Magnetic Air

*"Game Clock" is the expected GPU clock when running in typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

**"Boost Clock" is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

Outputs

DisplayPort 2.1: 3x
HDMI™ 2.1: 1x

Requirements

External Power: 2x PCI-E 8 pin connections
Minimum Power Supply Requirement: 800 watt

Certifications

RoHS

Package Contents

Quick Installation Guide: 1
GPU Support Stand: 1

Estimated Dimensions & Weights

Card Dimension (cm): 35 x 14 x 6.7
Card Dimension (inch): 13.98 x 5.51 x 2.64
Master Carton Dimensions (cm): 46 x 39.5 x 47.5
Master Carton Dimensions (inch): 18.11 x 15.55 x 18.7
Master Carton Weight (Kg): 15.3
Master Carton Weight (lb): 33.73
Package Dimensions (cm): 44.5 x 23.5 x 12.5
Package Dimensions (inch): 17.51 x 9.25 x 4.92
Package Weight (Kg): 2.35
Package Weight (lb): 5.07
Units/Carton: 6

Technologies

64 AMD RDNA™ 4 Compute Units (with RT+AI Accelerators)
AMD Infinity Cache™ technology
DisplayPort™ 2.1
AMD Radiance Display™ Engine
AMD Radeon™ Boost technology*
AMD Radeon™ Anti-Lag* technology*
16GB GDDR6 on 256-Bit Memory Bus
PCI® Express 5.0 ready
AMD FidelityFX™ technologies*
AMD FidelityFX™ Super Resolution technology*
Microsoft® DirectX® 12 Ultimate
Microsoft® DirectStorage
Vulkan® Optimized
AMD smart technologies*
AMD Software: Adrenalin Edition™ application
AMD Noise Suppression*
AMD Privacy View*
AMD Radeon™ Super Resolution technology*
AMD Link*
AMD Freesync™ technology*

Key Features

HDMI™ 4K Support
4K H264 Decode
4K H264 Encode
H265/HEVC Decode
H265/HEVC Encode
AV1 Decode
AV1 Encode

XFX RX 9070 XT Quicksilver Magnetic Air Edition 16GB Graphics Card
