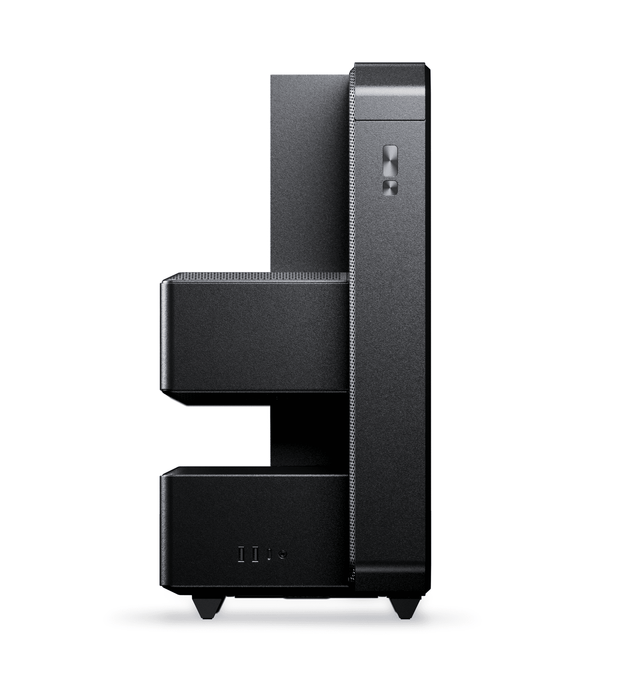

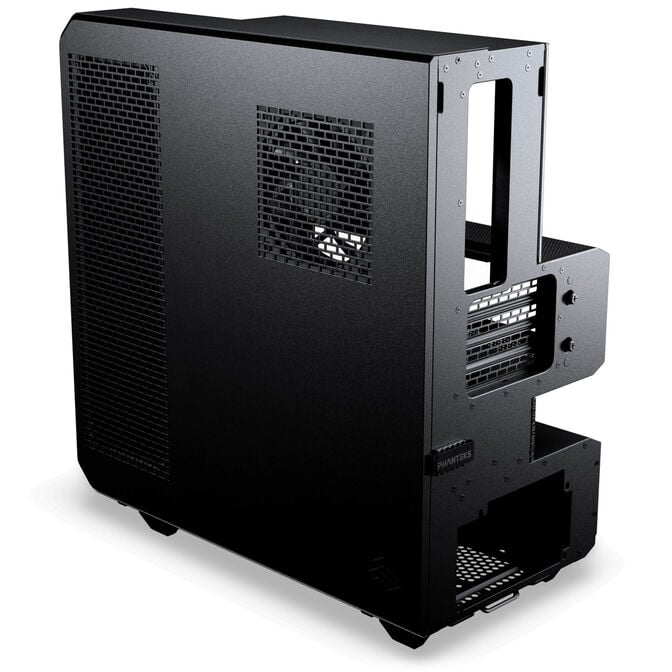

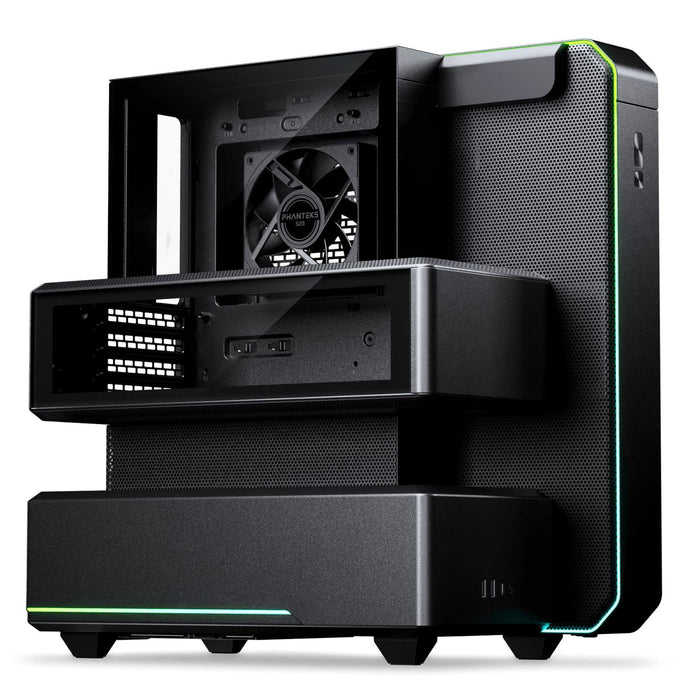

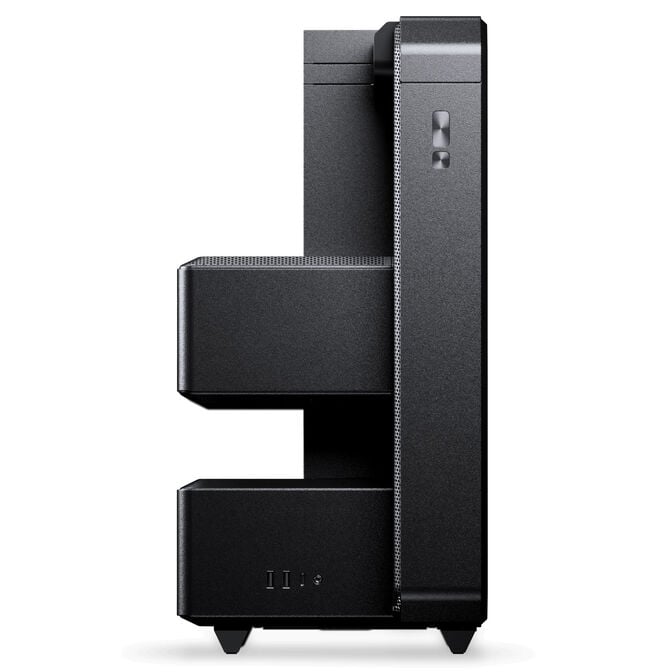

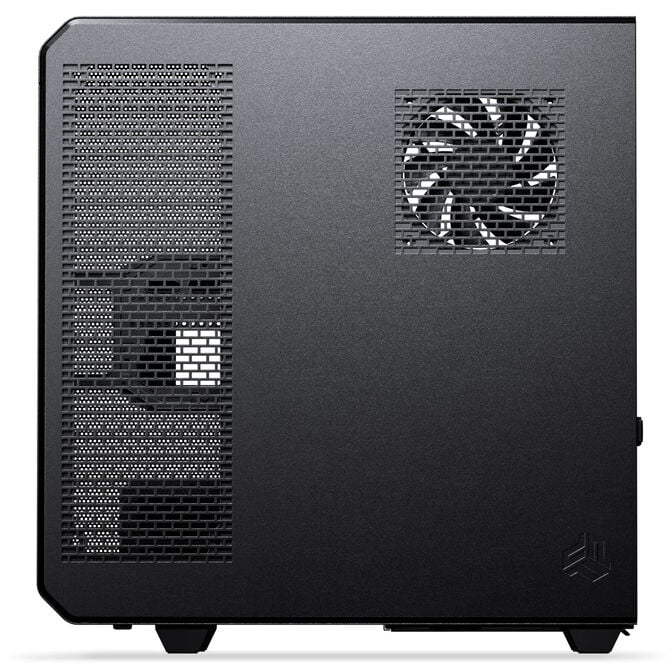

Phanteks EX5 High Airflow ATX Chamber Case - Satin Black

The Phanteks EX5 is a mid-tower ATX case featuring an innovative compartmentalised design that separates your motherboard, GPU, and PSU into individual chambers. This layout allows each component to be cooled directly by its own thermal solution, delivering excellent thermal performance with minimal fan requirements.

Key Features

• Compartmentalised chamber design — motherboard, GPU, and PSU each housed separately for dedicated airflow paths
• Supports Mini-ITX to ATX motherboards
• GPU clearance up to 358mm — accommodates 3.5-slot graphics cards including large enthusiast models
• Only four 120mm fans required for effective cooling of the main chamber
• 360mm AIO radiator support — side-mounted next to the motherboard tray
• Integrated ARGB lighting strips at the base of the PSU chamber and along the AIO chamber
• Mesh panel construction on GPU and PSU chambers for direct fresh air intake

Thermal Design

Unlike traditional cases that rely on a shared airflow path, the EX5 routes cool air independently to each chamber. A single 120mm fan behind the motherboard provides direct airflow to your CPU, VRMs, and RAM. The GPU and PSU chambers feature porous mesh panels, allowing their on-board cooling solutions to draw fresh air without relying on exhaust from other components.

Clean Build & Cable Management

The compartmentalised layout naturally conceals excess cables and tubing. AIO pipes can be routed along the top of the case and hidden behind strategically positioned panels, whilst the PSU chamber provides space for storing surplus wiring. Tempered glass and aluminium panels on the GPU chamber protect your graphics card whilst showcasing RGB lighting if present.
