MSI MPG B650 Edge WIFI ATX AM5 Motherboard

MSI MPG B650 Edge WIFI ATX AM5 Motherboard

SKU: MPG B650 EDGE WIFI
Availability:
in stock
In stock
Save 20% Save 20%
$333.00
$417.00
$417.00 - $417.00
$417.00
$333.00 - $333.00
$333.00

READ OUR REVIEWS

ESTABLISHED 1996

GET FREE EXPERT ADVICE

VISIT OUR EXPERIENCE STORE
Document

Perform in Style

The MPG B650 EDGE WIFI is a gaming oriented ATX motherboard constructed around the latest AMD B650 chipset that delivers both performance and style.

Supports AMD Ryzen 7000 Processors

The MPG B650 EDGE WIFI motherboard supports AMD Ryzen 7000 processors.

Form Factor: ATX

Socket Type: AM5

Chipset: AMD B650

14+2+1 Duet Rail Power System with 80A Smart Power Stage

With exclusive Core Boost technology, the MPG B650 EDGE WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings:

1. Digital PWM IC

2. 14-Phase Duet-Rail Power (80A)

3. 2-Phase SOC Power

4. 1-Phase MISC Power

Integrated Cooling Features

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

Fortified PCI-e 4.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

2 x PCI-e 4.0/3.0 x16 slots (Primary with Steel Armor)

1 x PCI-e 3.0 x1 slot

4 x DDR5 Dual Channel (6600+ MHz OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 6600 MHz, supports AMD EXPO.

Gen5 M.2 Connectors

The MPG B650 EDGE WIFI motherboard features MSI's latest M.2 slots:

1 x Gen5 x4 128Gb/s slot

2 x Gen4 x4 64Gb/s slots

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: A Realtek RTL8125BG 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.

HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
K
Kamil Rzadzik
msi the best

This MSI motherboards is everything I need as a first time pc builder. It looks amazing in the case and has a lot of features that i very usefull. The quality is very good. I love the rgb dragon !

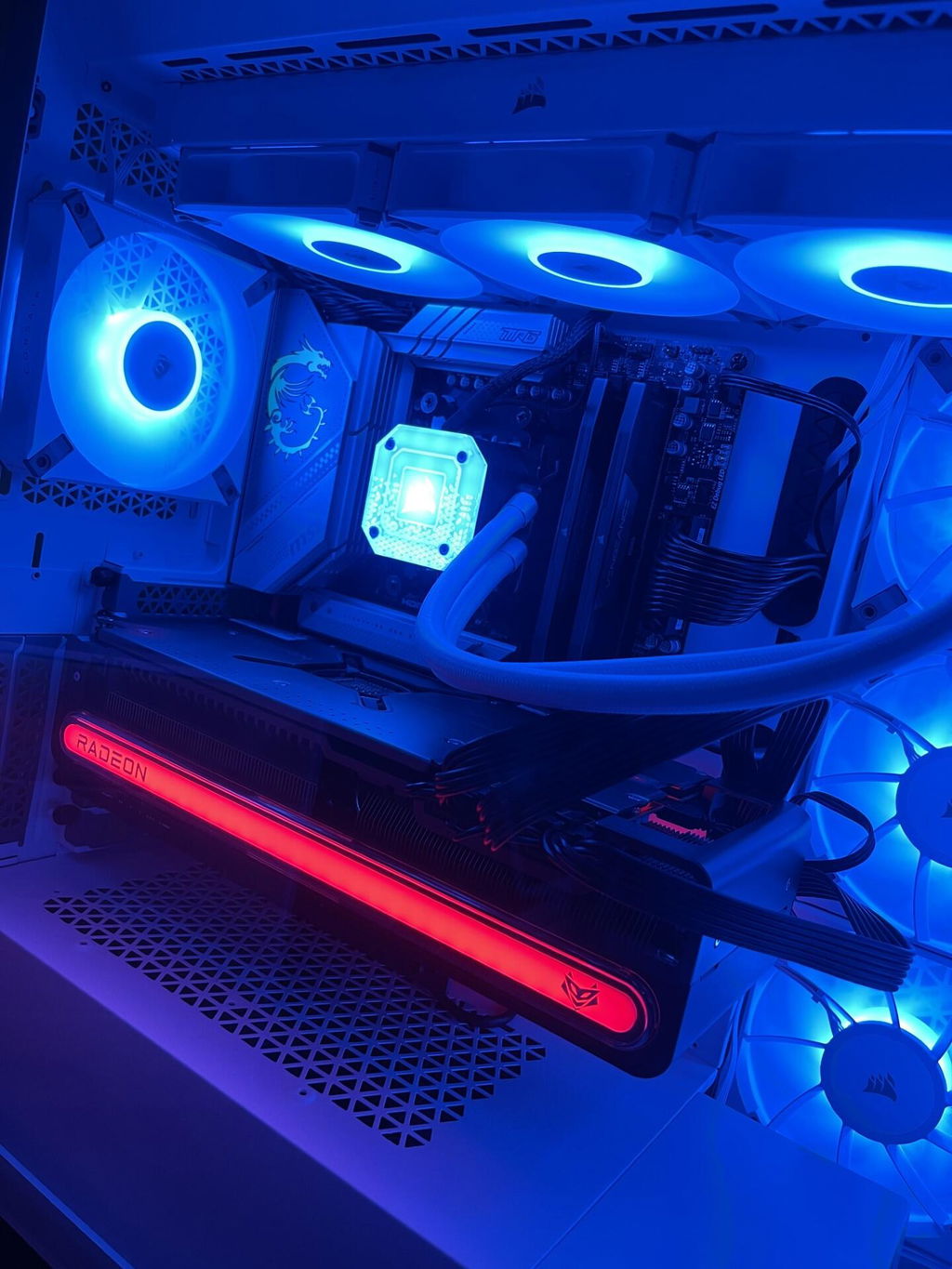

User picture
R
R.K.
White B650 Motherboard on a budget

Finding a white accented B650 board at or around £200 brings a few choices, however for me this one managed to slightly edge out the rest of the competition, with the RGB set to white it will fit very nicely into an all white or white accented setup. The board seems well made and the heatsinks are solid, has 14, 80A VRMs and a strong amount of USB ports, as well as Wifi, something other white boards in this price point lack. While not necessary it would be nice for a small discount on a non-Wifi version as I myself have powerline access. I appreciate this board has is a white/clean looking IO shield. The biggest miss of this board is a boot error lighting for troubleshooting issues if you can't get to BIOS.
