Motherboard Support
Compatible Motherboard Formats	Micro-ATX, Mini-ITX
Max. Motherboard Format	Micro-ATX
Lighting
Lighting / RGB	No
Back Connect
Back Connect	No
Case Features
I/O position	Side
Side panel	with window
Vertical GPU Mount	No
Adjustable Vertical GPU Bracket	No
Front door	No
Cable Management	Yes
Filters Included	Yes
Filter Position	Top, Bottom
Noise dampening	No
Mainboard slide / tray	No
Transport System	No
Colour
Primary Colour	Black
Radiator Support
Max. Radiator Compatibility	1x Dual (240 mm)
Radiator/AIO Support (Top)	240mm Radiator
Power Supply
PSU included	No
PSU Format	ATX
Power Supply Position	rear bottom
Mounting
Case VESA Mountable	No
Internal Monitor Mount	No
Materials
Materials	ABS, Steel, Tempered Glass
Dimensions
Length / Depth	437 mm
Width	216 mm
Height	419 mm
Weight	6.11 kg
Fan Support
Case Fan Support (Bottom)	120mm Fan (3x)
Case Fan Support (Top)	120mm Fan (3x), 140mm Fan (2x)
Case Fan Support (Rear)	120mm Fan (1x)
Max. Number of Fans	7
120 mm fans	7
140 mm fans	2
Drive Bays
Max. 2.5 Inch Drives	2
Max. 3.5 Inch Drives	1
Max. 5.25 Inch Drives	0
Hot swap drive bays	No
Compliance
Compliance Documents	Jonsbo PC Case Compliance and Safety
Internal Dimensions
Max. CPU Cooler Height	171 mm
Max. GPU Length	410 mm
Max. PSU Length / Depth	170 mm
Expansion Slots
Expansion slots / PCI slots	5
Additional Contents
Fans Included	No
Included fans	None
Case
Case Type	Mini Case
Display
Display Included	Yes
Features
Housing Feedthrough	No
External Ports
Front I/O – USB Type C Ports Total	1
Front I/O – USB Type A Ports Total	2
USB 3.1 (external) Type C	1
USB 3.0 (external) Type A	2
Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Header
Fan Controller / Fan Hub	No
Cable Specifications
Riser Cable Included	No
Connectivity
Card reader	No

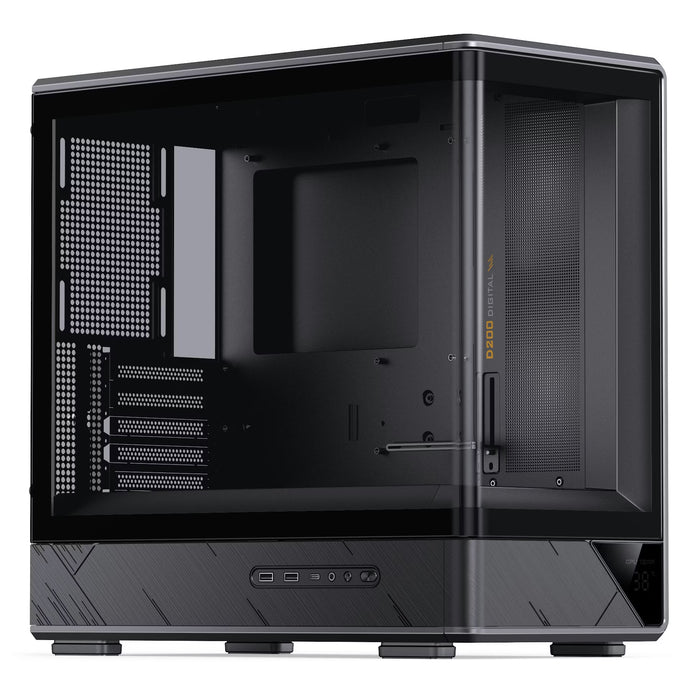

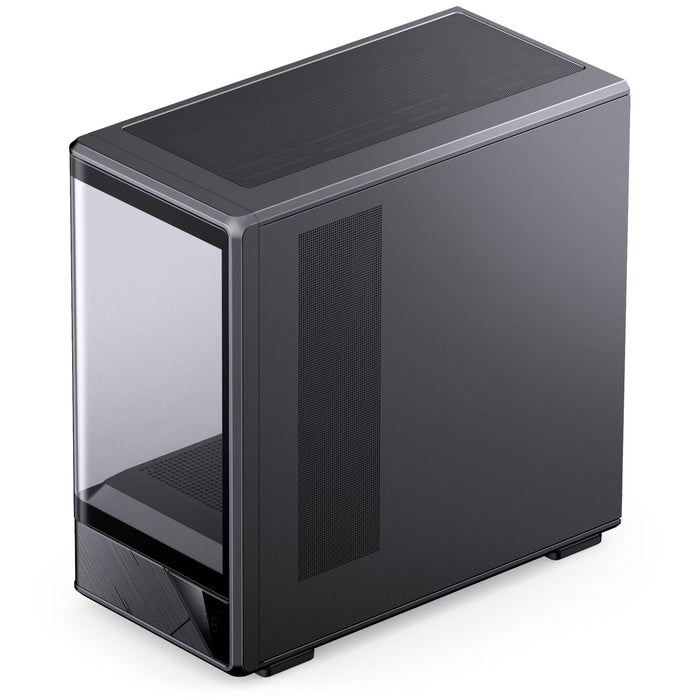

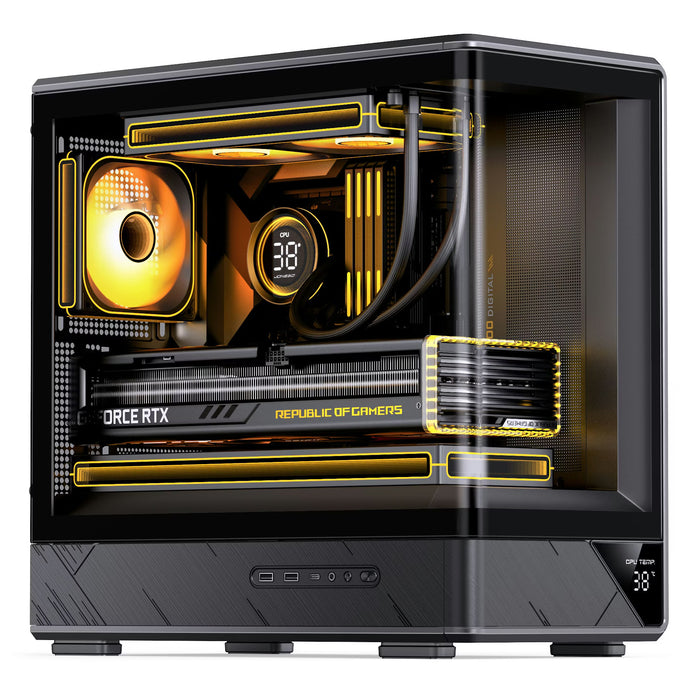

Jonsbo D200 Black mATX PC Case
