Meshify 3 XL - Generous Performance

Meshify 3 XL is a PC case offering top-tier cooling performance, versatility, and build quality in a generous format. This third iteration of the Meshify Series refines the dynamic aesthetic of the previous series and features performance-boosting engineering updates. With a spacious interior and multi-radiator support, Meshify 3 XL is ideal for enthusiast-level custom loop builds. In the Ambience Pro RGB version, its sleek aesthetic is complemented by integrated atmospheric lighting and three Momentum RGB fans, which are easily configurable through an intuitive web-based tool.

Ventilated front mesh panel with sleek, sculpted expression
Engineered for cooling performance with ample ventilation
Advanced ambient lighting with startup effect
Software-free RGB customization stored locally on the included Adjust Pro Hub
Spacious interior with multi-radiator support, well-suited to custom loop configurations
Supports up to 420 mm top radiators and 360 mm front and side radiators, with removable brackets for easy installation
Includes three Momentum 14 RGB fans, with space for up to ten 140 mm fans
Easily accessible I/O with a 20 Gbps USB-C, two USB-A ports, and an audio jack
Clean interior with new cable aligners for easy cable management
Air guide directs air towards components to further improve GPU cooling

Advanced Airflow

Access performance engineering in a spacious format, with ample ventilation and an air guide which helps keep components running cool.

Evolved Design

Elevate your space with an aerodynamic design featuring a sleek, rockface-inspired mesh front panel.

Enhanced Lighting

Create the right atmosphere with advanced ARGB Gen 2 ambient case lighting and fans, including an animated PC startup effect.

Tailored Experience - Adjust Pro Hub

Customize your lighting and fans easily with Adjust Pro - a download-free, web browser-based configuration tool, accessed via the included Adjust Pro Hub.

RGB and fan speed customization without the need for background software
Easily configurable via Fractal’s online Adjust Pro configuration tool
Allows users to customize RGB using presets, animation modes, and startup effects
Custom flat cables for easy cable management and connectivity
Includes four output ports
Backwards compatibility with standard ARGB/PWM components via a legacy device splitter cable
Support ARGB Gen 2 (backwards compatible)
Supports Windows 11 “Dynamic Lighting”
Status LED indicator to show the state of the device
Grippy rubber feet and magnetic fastening to ensure firm fit toward the case
Works out of the box

Designed for Gaming

Create a powerful gaming system with space for graphics cards up to 512 mm in length and E-ATX motherboard compatibility.

Ideal for Custom Loops

Create a build with advanced cooling, with space for up to a 420 mm top radiator and up to 360 mm front and side radiators.

Powerful Fans Included

Includes three high-performance Momentum 14 RGB fans with LCP blades and true FDB bearings for improved cooling and quieter operation.

Easily Accessible

Enjoy a smooth build experience with removable panels, including a sliding top panel featuring a fabric tab.

Clean Finish

Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.

Accessible I/O

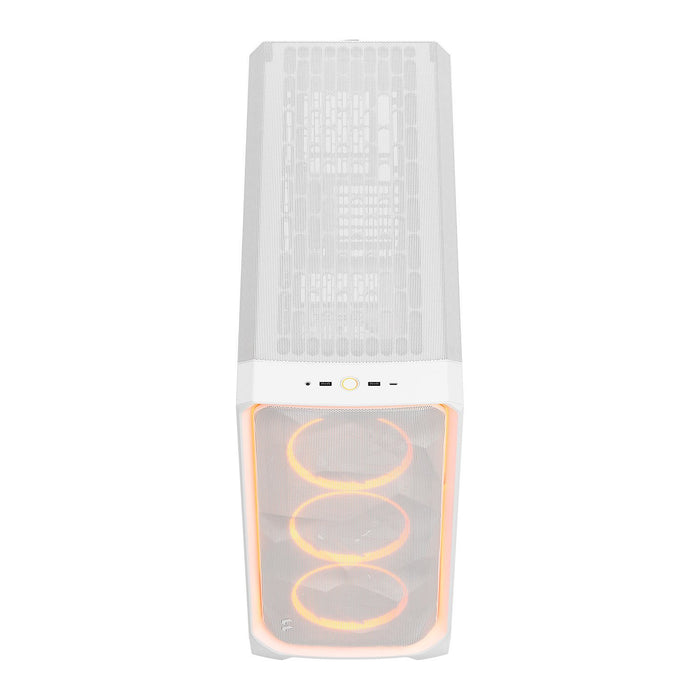

Connect devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports, and a combined audio jack.

Specifications

Form Factor

E-ATX

Power Supply Wattage

No PSU

Motherboard Support

E-ATX / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB

Connectors / Controls

1 x USB Type-C 20Gbps
2 x USB Type-A 5Gbps
1 x Audio Combo Jack
Power button

Drive Bays

2/5 x 3.5"/2.5" Drive Mounts

Expansion Slots

7 Expansion slots

Cooling System

Included:
Front: 3 x 140 mm Momentum RGB Fans
Adjust Pro Hub - Software-free RGB customisation

Fan Mounts:
Front: 3 x 120 / 3 x 140 / 2 x 180 mm
Top: 3 x 120 / 3 x 140 mm
Rear: 1 x 120 / 1 x 140 mm
Side: 3 x 140 mm (no 120 support without radiator)
Bottom: None

Radiator Support

Radiator Support:
Front: Up to 360 / 280 mm
Top: Up to 360 / 420 mm (up to 475 mm)
Rear: Up to 120 / 140 mm
Side: 360 mm (with brackets)
Bottom: None

Colour

Black

Material

Left Side Panel: Clear Tint Tempered Glass
Right Side Panel: Industrial Steel

Compatibility

GPU Max Length: 512 mm
GPU Max Height: 189 mm (7 slot) including cables
CPU Cooler Max Height: 182 mm
PSU Max Length: 230 mm
Cable Routing Space: 37.5 mm

Weight/Dimensions

11.4 kg
(LxWxH) 567 x 245 x 515 mm
w/o feet/protrusions/screws: 490 x 245 x 515 mm

Additional Features

Advanced ambient lighting with startup effect
Ventilated front mesh panel
Engineered for cooling performance
Air guide directs air towards components
Dust filters: PSU (Bottom)
Tool-less push-to-lock panels & bottom filter
Captive thumbscrews: Top Rad. Bracket / Air Guide / PSU Bracket
Cable cover
Cable organisers: 3 Velcro straps + 3 Cable Aligners

Accessories

Accessory Box
Manual
Red Note

Package Weight

13.7000 kg

Warranty

2 Years
