Celebrate the small form factor PC with the Lian Li x DAN Cases A4-H2O Mini-ITX Case. With just 11L capacity, this PC case has an incredibly small footprint but an intelligent design, maximising hardware capacity. With three expansion slots, this case can accommodate a triple slot GPU up to 322mm long, which connects to a Mini-ITX motherboard via the included PCIe 5.0 riser cable. Every panel is removable for ease of access, with many sporting a fine mesh for excellent ventilation. Additionally, improving the design of the previous A4-SFX, this model can accommodate a 240 AiO with the radiator in a dedicated chamber. Big power in a small chassis!

Lian Li x DAN Cases A4-H2O Mini-ITX PC Case at a Glance:

Small form factor Mini-ITX PC case designed with DAN Cases
SPCC steel frame with mesh aluminium panelling
Compatible with Mini-ITX motherboards and SFX/SFX-L power supplies
Clearance for a triple slot GPU up to 322mm long
Includes a PCIe 5.0 riser cable
Dedicated top chamber for 240mm AiO radiator, up to 55mm thick
All panels fully removable for ease of access and installation

Economic Footprint

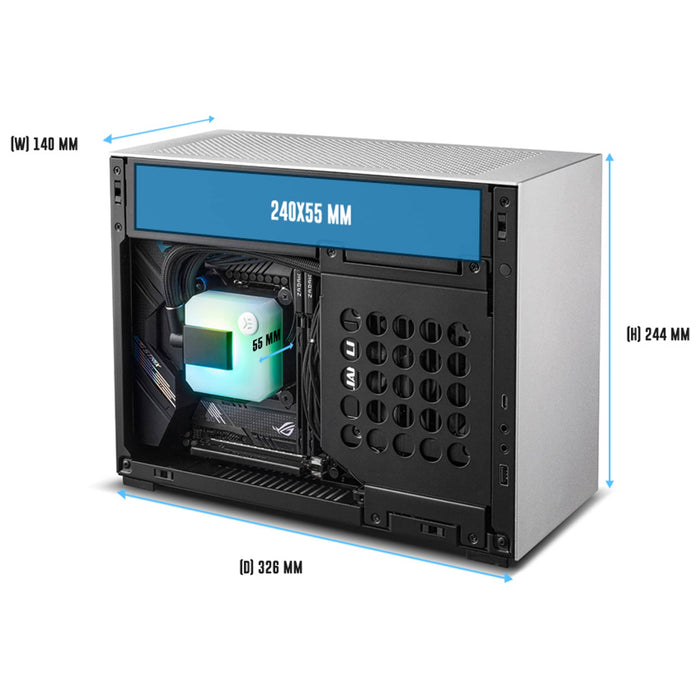

The Lian Li x DAN Cases A4-H2O is the ultimate celebration of the small form factor case. This Mini-ITX chassis has an incredibly small footprint, making it ideal for use as either a gaming PC or a console alternative. With its robust steel interior and sand-blasted aluminium panelling, this is a sleek case with a premium finish. At just 244mm tall and 140mm wide, this case effortlessly integrates within any gaming environment.

Sandwich Layout

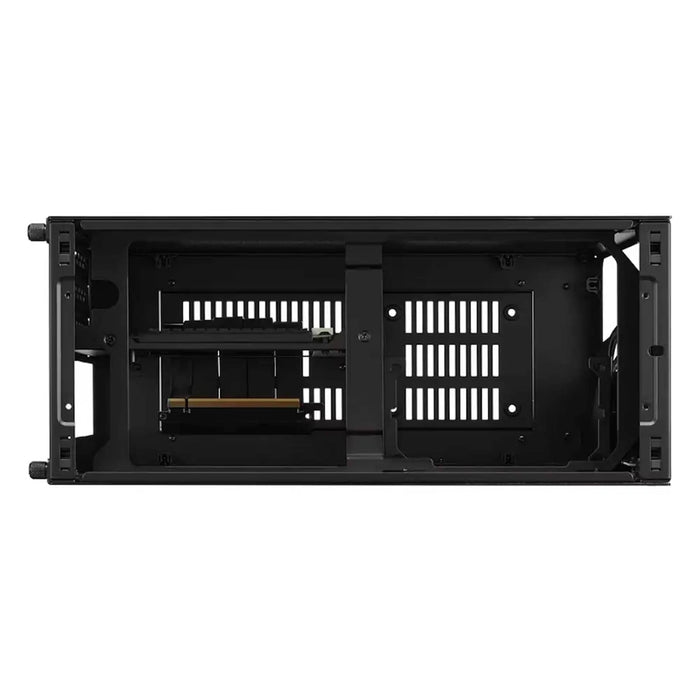

To maximise on hardware, the Lian Li x DAN Cases A4-H2O features an intelligent sandwich layout design. Each area is specifically designed to cater for hardware that goes beyond the expectations of the Mini-ITX form factor. This chassis can hold an SFX power supply as standard or, alternatively, the mounting bracket can be removed to accommodate an SFX-L PSU. The motherboard is mounted on the left-hand side of the middle divider, with support for the Mini-ITX format only. Behind this, there is a dedicated area that allows for triple-slot graphics cards up to 322mm long.

A truly remarkable feat, the Lian Li x DAN Cases A4-H2O does all this with space for a 240mm radiator as part of an AiO cooling loop, with a CPU cooler up to 55mm tall. Under the top panel, there is a fan bracket that can be removed and replaced with a 240mm radiator, up to 55mm thick. As a result, this case is fully capable of water cooling your high-end hardware.

Ease of Use

With so much going on in a small space, to make installation easier, every panel on the Lian Li x DAN Cases A4-H2O can be removed. This grants better access to the interior, enabling you to manage cables and instal hardware with ease. Additionally, the steel framework features an opening to aid in mounting longer GPUs. Plus, the bottom panel boasts a mounting bracket for a 2.5” SSD, with ventilation placed beneath to prevent the hardware from overheating.

There is ample ventilation throughout the Lian Li x DAN Cases A4-H2O thanks to the fine mesh featured on the side and top panels. Promoting outstanding natural airflow, this will work perfectly with an AiO cooler to keep your gaming PC at optimum temperature.

Choices

The Lian Li x DAN Cases A4-H2O comes in two colours. This model is Silver, with the other choice being Black. As the GPU can only be mounted vertically, a PCIe riser cable is included with the case. For the best performance, this cables utilises PCIe 5.0 technology, supporting up to 32GT/s data transfer. To keep your gaming PC looking sleek, this cable tucks behind the motherboard during installation.

Connectivity

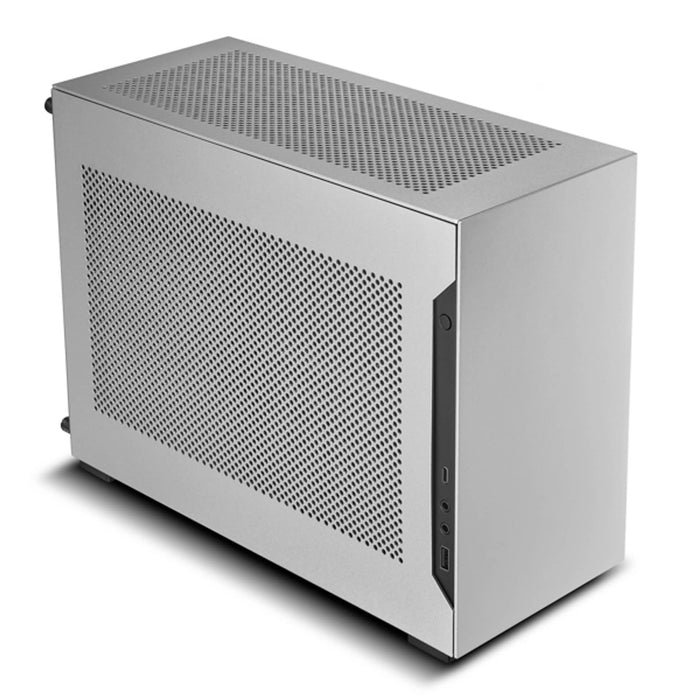

In a stylish recess, the I/O panel rests on the left-hand side of the Lian Li x DAN Cases A4-H20. At the top is a premium-grade power button, whilst the bottom plays host to one USB 3.1 Type C, one USB 3.0 Type A, and two jacks dedicated to microphones and audio.

Dan Case A4-H2O A5 Gen 5.0 PCIe Riser Mini-ITX Case Silver
