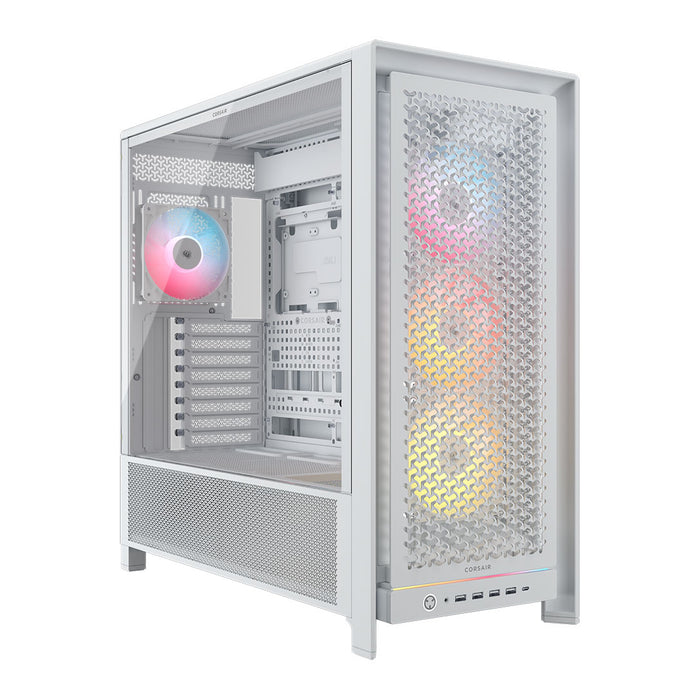

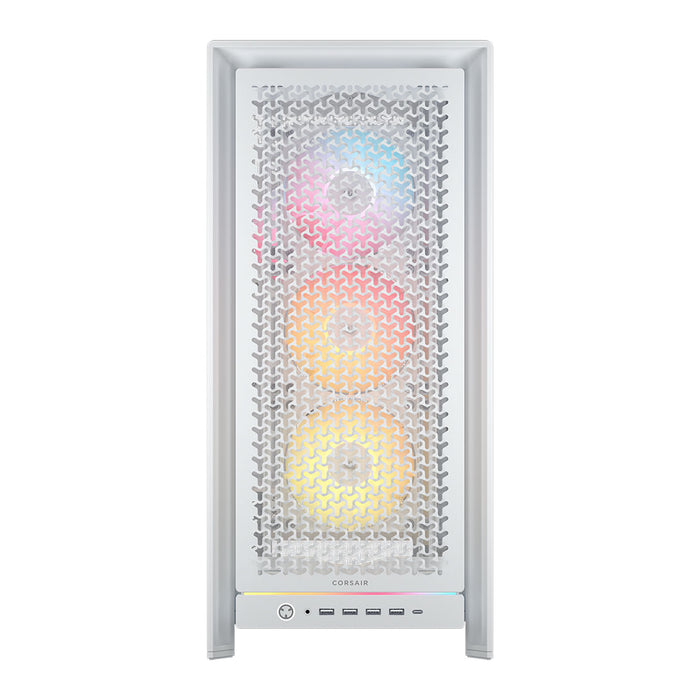

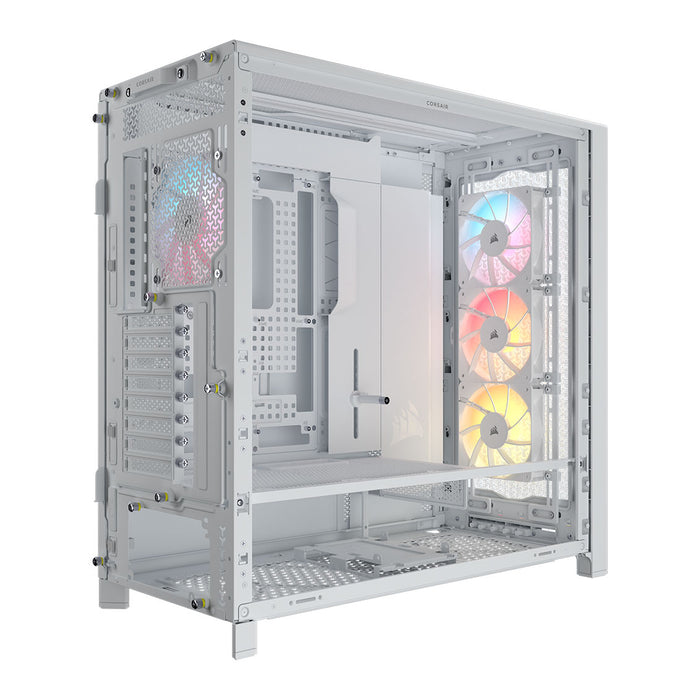

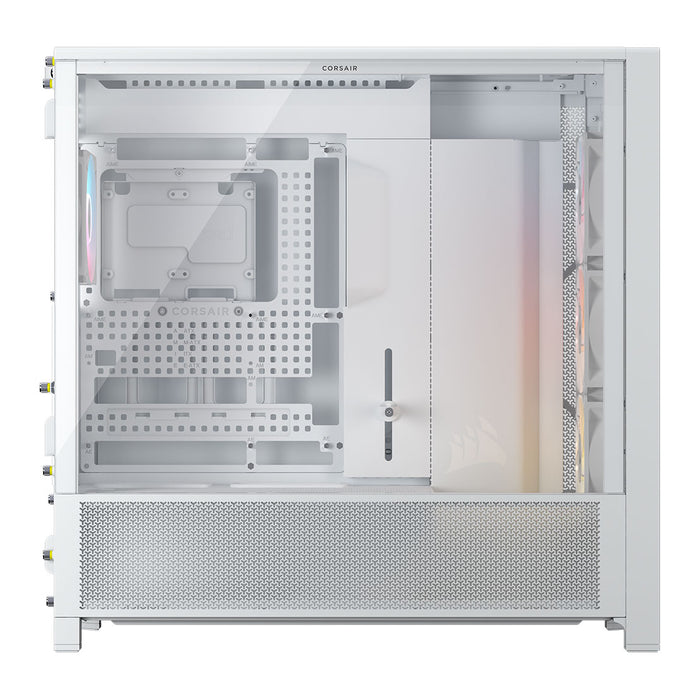

Corsair FRAME 5000D RS ARGB Airflow White ATX PC Case

Corsair FRAME 5000D RS ARGB Airflow White ATX PC Case

SKU: CC-9011310-WW
Availability:
in stock
In stock
Save 6% Save 6%
$253.00
$270.00
$270.00 - $270.00
$270.00
$253.00 - $253.00
$253.00
Ex-VAT
Build the high-airflow, low-temperature PC of your dreams in the CORSAIR FRAME 5000D high-airflow case, featuring the innovative FRAME Modular Case System offering unprecedented flexibility to perfectly customize your build as you want it. The InfiniRail™ Mounting System simplifies fan installation, while support for up to a 420mm radiator and a new 3D Y-Pattern Airflow front panel ensure cool air is directed precisely where it’s needed most. The increased width and length ensure compatibility with the most powerful graphics cards and cooling options, with support for reverse connection motherboards future-proofing your system. We provide the frame. You create the art.



  • FRAME Modular Case System - The revolutionary FRAME system gives new meaning to the word customization. he revolutionary FRAME Modular Case System redefines customization. Some of the choices include upgrading the motherboard tray to billet aluminum, replacing the front I/O panel with different USB ports, and swapping out the front intake panel for a different look. This case evolves with your needs, offering a variety of options for future upgrades and aesthetic changes.
  • Clean Lines or Turbo Cooled – The internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential.
  • 3D Y-Pattern Airflow Panel – Optimized for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.
  • Top 420mm Radiator Support – Take your cooling to the next level with a top-mounted 420mm radiator and room for 360mm radiators on the front or side.
  • InfiniRail™ Fan Mounting Options - Mount up to 14x 120mm fans simultaneously to keep cool air flowing in and hot air exhausting quickly and efficiently, or easily adjust the InfiniRail™ fan mounts for 140mm or 200mm fan locations. The combinations are nearly endless.
  • Four RS140 ARGB Fans Included – RS140 ARGB PWM daisy-chainable fans for simply great cooling – no separate controller needed.
    Controlled through one 4-pin PWM connector and one +5V ARGB connector on your compatible motherboard
  • Supports Reverse Connection Motherboards – ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.
  • Versatile Connectivity – The FRAME 5000D offers four USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C front I/O panel. The I/O ports have also been relocated to the bottom of the case to make it easy for folks with their PC on their desk to connect devices.
  • Drives, Drives, Drives – Included drive trays for dual 3.5” hard drives or four 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cables.
  • Solid GPU Support (Literally) – Modern graphics cards are bigger and heavier than ever, which is why every 5000D comes with an included GPU Anti-sag stabilization arm
  • Just a Bit Bigger – GPUs are getting bigger and hotter, which is why the Frame 5000D was designed slightly longer and wider than most other mid-tower cases.
  • Built for iCUE Link – Designed from the ground up for easy iCUE LINK integration, the FRAME 5000D has cable hooks, increased tie downs, and a dedicated mounting pocket for an iCUE LINK System Hub (sold separately).
  • Touches of Elegance – The Frame 5000D includes a number of features displaying CORSAIR's attention to detail. They include external cable management points, captive screws that won’t get lost, fully color-matched rivets, screws, and plastic components, an attractive Frost White option, and built-in rotatable PCI slots for vertical GPU mounting fans.
  • RapidRoute 2.0 - FRAME 5000D features the next generation of CORSAIR's cable-routing hardware, with a pegboard-style motherboard tray that allows for custom mounting points for tie-downs and buckles. It also comes with several types of cable clips, or you can 3D print your own. It includes six cinching straps and two wire loom pairs to secure extra cable lengths for a tidy interior.
Model Frame 5000D RS ARGB
Case Type High Airflow Mid‑Tower ATX
Motherboard Compatibility Mini‑ITX, Micro‑ATX, ATX, E‑ATX (up to 305×277 mm), reverse‑connector ready
Exterior Materials 3D‑Y steel mesh, tempered glass, steel frame
Dimensions (H × W × D) 556 × 250 × 542 mm
Weight ≈15.5 kg
Expansion Slots 8 Horizontal + 3 Vertical
Max GPU Length 450 mm
Max CPU Cooler Height 175 mm
Max PSU Length 250 mm
Fan Support Front: up to 3×200 mm (or 3×140/3×120)
Top: up to 3×140 mm
Side: up to 3×140 mm
Rear: 1×140 mm
Shroud: 2×120 mm
Radiator Support Top: up to 420 mm; Front/Side: up to 360 mm; Rear: up to 140 mm
Drive Bays 6× 2.5″ SSD + 2× 3.5″ HDD (tool-free)
Included Fans 4× 140 mm ARGB RS Series Fans
Front I/O Ports 1× USB‑C Gen 2, 4× USB‑A Gen 1, audio jack, power button
Dust Filtration Front, bottom, left, and right panels
Cable Routing Clearance 42 mm behind motherboard tray
Warranty 2 Years
