CABLEMOD VERTICAL GPU MOUNT HDMI/DP

CABLEMOD VERTICAL GPU MOUNT HDMI/DP

SKU: CM-VPB-HDK-R
Availability:
in stock
In stock
$92.00
$92.00 - $92.00
$92.00 - $92.00
$92.00
Ex VAT

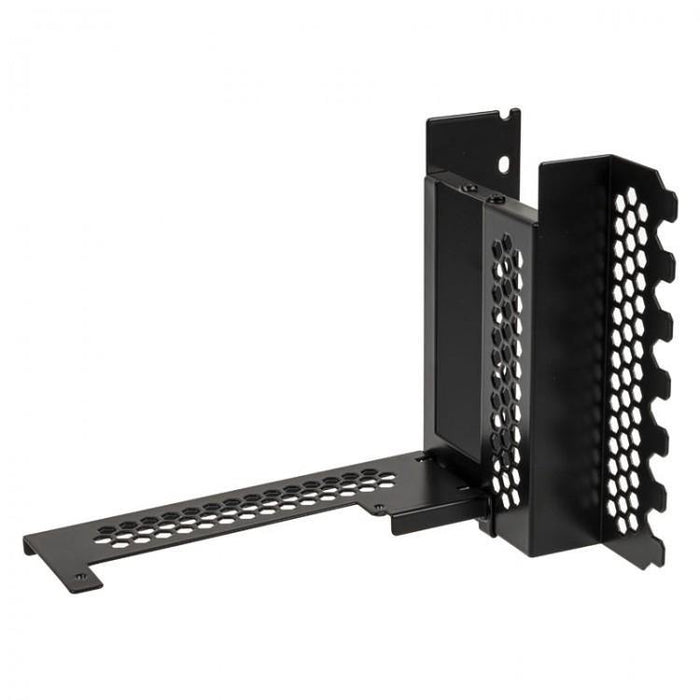

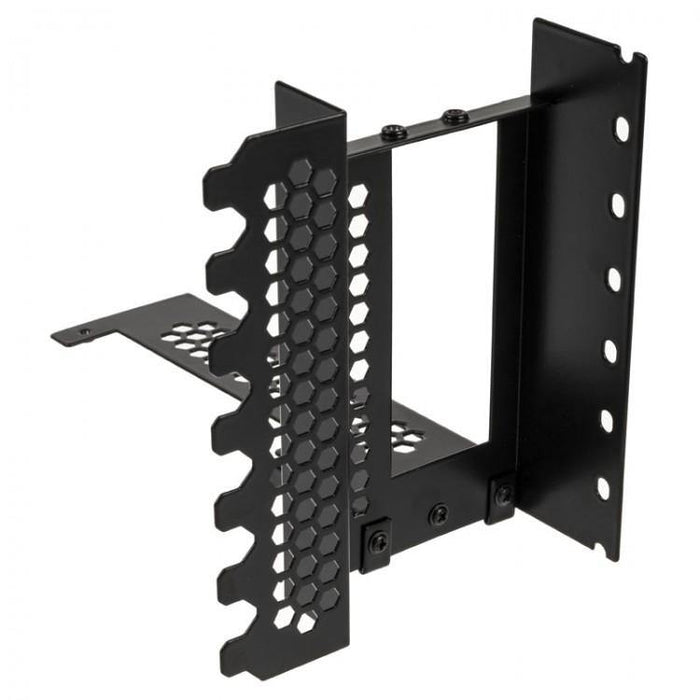

CableMod's black vertical graphics card holder consists of a special PCI slot bezel and PCIe riser cable. It enables users to easily vertically mount a graphics card to any tower case with a free PCI slot and least seven further free slots above.

The bundled riser cable connects the GPU to a PCIe slot on the motherboard. When its x16 slot is connected to a full x16 data line, the full bandwidth can be used for graphics. Two right-angle DisplayPort cables are also included.

Important note: The total length of the graphics card is increased by 3.1 cm by using the vertical graphics card holder

SPECIFICATION:

  • Colour: black
  • Material: Powder coated steel
  • Plug: PCIe x16 lanes
  • Socket: PCIe x16 lanes
  • Supported PCI Express standards: 1.x, 2.x, 3.0
  • Compatible Cases: Common Tower form factor cases

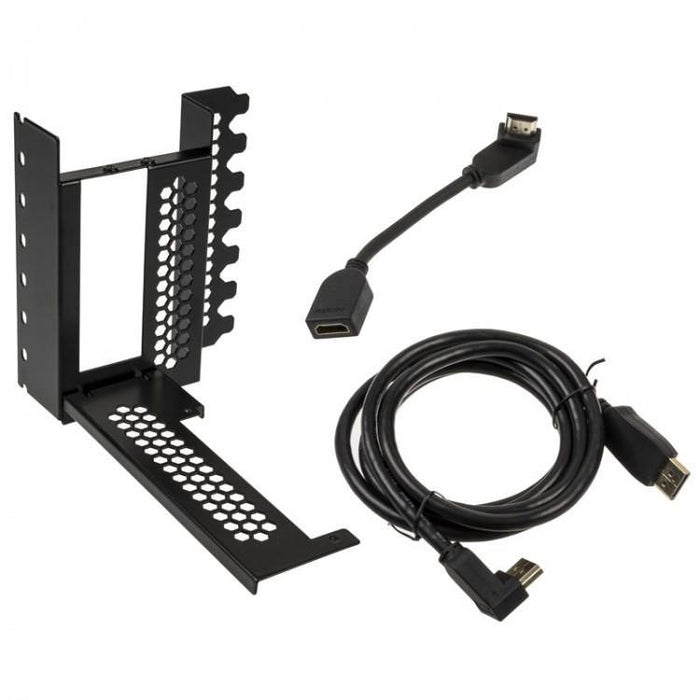

  • Included components:
    1x vertical graphics card holder
    1x PCIe x16 riser cable (210mm)
    1x DisplayPort cable (1.8 m)
    1x HDMI adapter cable 7x screws
