Swift Class

The Swift class exemplifies a modern aerodynamic style through a clean and elegant design. It is a thoughtful design with the sole purpose of maximizing airflow to improve cooling and performance. The Swift line of graphics cards is XFX's entry-level line of graphics cards. Swift model graphics cards have good cooling performance and offer a no-frills, amazing gaming performance.

Airflow and Aesthetics

With each iteration of the XFX Swift class, we try to simplify the design while also improving thermal performance. Our nickel-plated copper cold plate, high performance fans, and 6mm heatpipes all come together to give great cooler performance and thermal dissipation.

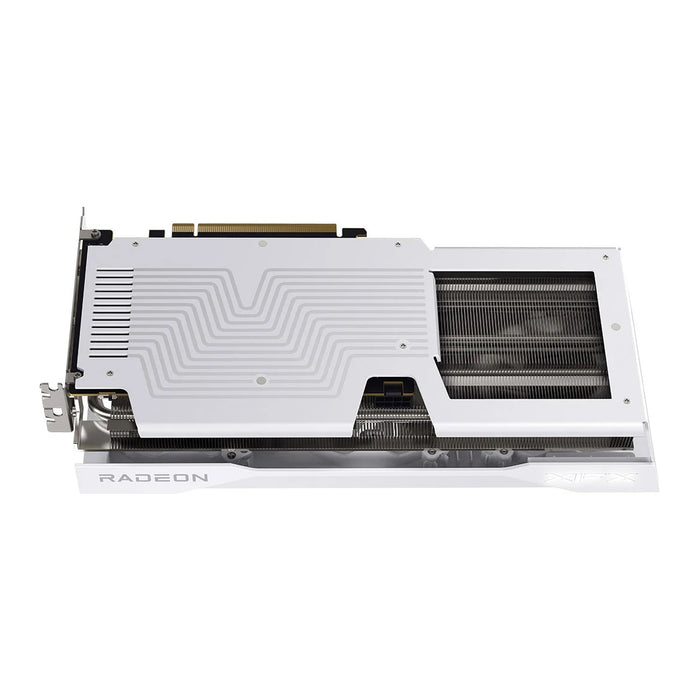

Complete Reinforcement

A full backplate provides rigidity and helps dissipate heat, ensuring peak performance and durability for your gaming sessions.

AMD RDNA™ 4 Architecture

With the latest AMD RDNA™ 4 architecture, experience next-generation advancements in performance and efficiency with faster raytracing and AI acceleration.

Powerful AI Enhanced Visuals

Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen raytracing, supercharged with AMD FidelityFX™ Super Resolution 4 ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine.

DESIGNED FOR LIGHTNING-FAST GAMING, POWERED BY AMD RDNA™ 4

Experience the next level of 1080p and 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology and AMD HYPR-RX for ultra-smooth, ultra-responsive gameplay that makes every play count.

Future-Ready Tech

Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.

GDDR6 Memory for Advanced Gaming

Equipped with up to 16GB of advanced GDDR6 memory to provide high bandwidth for 1080p and 1440p gaming. The Radeon RX 9060 series gives amazing performance for today’s most demanding games.

PCI® Express 5.0 Support

The AMD Radeon™ RX 9060 Series graphics cards feature PCIe® 5.0, with a throughput of 32 GT/s per lane, which enables two times the bandwidth compared to PCIe® 4.0.

500 Million Gamers Play On AMD Radeon

AMD Power most of todays newest consoles but also more Gaming PCs and Consoles are powered by AMD*. It's obvious what is the real choice when it comes to high performance graphics at a great value.

AMD RADEON™ IS WINDOWS 11 READY

Windows® 11 is created for the ultimate PC gaming, featuring superior graphics, amazing speed, and an incredible selection of games. Windows 11 includes gaming features like DirectX® 12.

Specifications

Bus Type

PCI-E 5.0

Primary Clock Speeds

Base Clock Up To: 1900 MHz
Game Clock Up To: 2780 MHz
Boost Clock Up to: 3320 MHz

Performance

Stream Processors: 2048
Compute Units: 32
Memory Bus: 128bit
Memory Clock: 20 Gbps
Memory Size: 16 GB
Memory Bandwidth: Up to 340 GB/s
Memory Type: GDDR6
Card Profile: Dual Slot
Thermal Solution: 3 Fan

*"Game Clock" is the expected GPU clock when running in typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

**"Boost Clock" is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

Outputs

DisplayPort 2.1: 2x
HDMI™ 2.1: 1x

Requirements

External Power: 1x PCI-E 8 pin connections
Minimum Power Supply Requirement: 450 watt

Certifications

RoHS

Package Contents

Quick Installation Guide: 1

Estimated Dimensions & Weights

Card Dimension (cm): 29 x 12.4 x 4.9
Card Dimension (inch): 11.42 x 4.88 x 1.93
Master Carton Dimensions (cm): 51.5 x 44.3 x 40.5
Master Carton Dimensions (inch): 20.28 x 17.44 x 15.94
Master Carton Weight (Kg): 15.57est
Master Carton Weight (lb): 34.33est
Package Dimensions (cm): 38.9 x 21.8 x 12.5
Package Dimensions (inch): 15.31 x 8.58 x 4.92
Package Weight (Kg): 1.74est
Package Weight (lb): 3.84est
Units/Carton: 8

Technologies

32 AMD RDNA™ 4 Compute Units (with RT+AI Accelerators)
AMD Infinity Cache™ technology
DisplayPort™ 2.1
AMD Radiance Display™ Engine
AMD Radeon™ Boost technology*
AMD Radeon™ Anti-Lag* technology*
16GB GDDR6 on 128-Bit Memory Bus
PCI® Express 5.0 ready
AMD FidelityFX™ technologies*
AMD FidelityFX™ Super Resolution technology*
Microsoft® DirectX® 12 Ultimate
Microsoft® DirectStorage
Vulkan® Optimized
AMD smart technologies*
AMD Software: Adrenalin Edition™ application
AMD Noise Suppression*
AMD Privacy View*
AMD Radeon™ Super Resolution technology*
AMD Link*
AMD Freesync™ technology*

Key Features

HDMI™ 4K Support
4K H264 Decode
4K H264 Encode
H265/HEVC Decode
H265/HEVC Encode
AV1 Decode
AV1 Encode

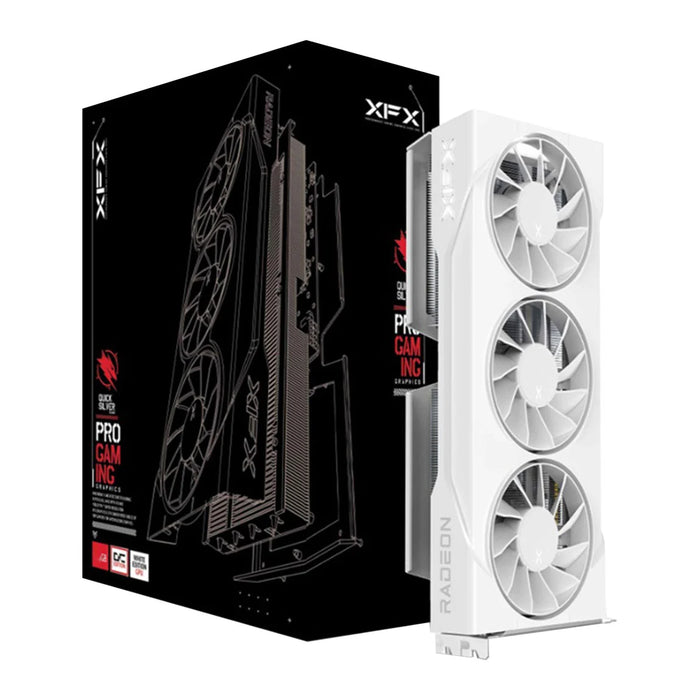

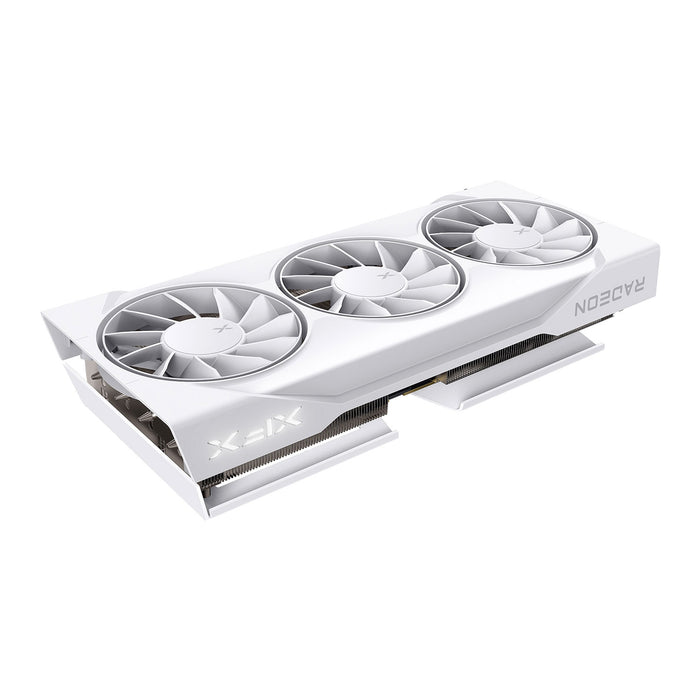

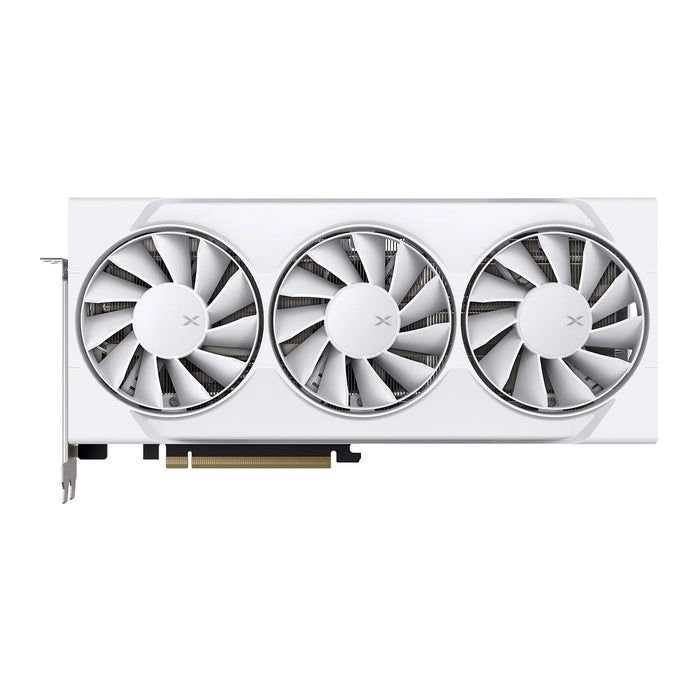

XFX RX 9060 XT Swift Gaming Triple Fan White 16GB Graphics Card
