The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe 5.0 and lightning-fast connectivity including dual USB4, 10G and 2.5G Ethernet, and WiFi 7. This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.

Dual USB4 - Up to 40Gbps transfer speed
Dual Ethernet & WiFi 7
ProArt Creator Hub - Features Pantone's color management utilities
Exclusive AI Technologies - AI Overclocking, AI Cooling II, AI Networking II
Easy PC DIY - PCIe Slot Q-Release Slim & M.2 Q-Release, Q-Slide and Q-Latch
PCIe 5.0 - For graphics cards and storage
16+2+2 (80A) Power Stages
Unleash DDR5 with AEMP Overclocking Technologies
Dynamic OC Switcher, Core Flex

Dual USB4 Connectivity

Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort In port on the rear I/O panel and direct the video output via the USB4 port.

10 Gb & 2.5 Gb Ethernet

Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

WiFi 7

The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels* on the 6GHz band and 4K QAM**. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

ASUS WiFi Q-Antenna

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

PCIe 5.0 Support

Fully embracing the latest standard, the ProArt X870E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Four Onboard M.2 Slots

ProArt X870E-Creator WiFi features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

PCIe 5.0 Expansion Slots

Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.

USB 20Gbps Type-C front-panel connector with Quick Charge 4+

This header boosts data transfers with speeds of up to 20 Gbps. It also features Quick Charge 4+, which can quickly charge your pen display, tablet or mobile phone at up to 30 watts.

Robust Power Design

Designed to meet the needs of high-core-count CPUs, the ProArt X870E-Creator WiFi features 16(80A)+2(80A)+2 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Intelligent AI Solutions

AI Overclocking - Maximized CPU performance, and predictions for ideal CPU and cooling settings, pushing your system to its limits.
AI Cooling II - Optimized thermals, and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.
AI Networking II - Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.

Performance Boost

Dynamic OC Switcher

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The new Overclocking Load Guard also has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex

Core Flex empowers you to smash limits farther than ever before by letting you control power and thermals in creative new ways. In its simplest form, you can let your system run unrestricted during lighter loads and set breakpoints to gradually reduce power consumption as temperature increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate parameters independently so that you can bend CPU performance to your will.

PBO Enhancement

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning PBO parameters, this AMD algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

Easy PC DIY

PCIe Slot Q-Release Slim - With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
M.2 Q-Release - The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
New M.2 Q-Latch - The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
M.2 Q-Slide - A new sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation.
Q-Antenna - With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

The Power of Minimalist Design

A spark of inspiration can breathe life into a concept that leads to a masterpiece. ProArt is a comprehensive ecosystem providing professional creators with a stable foundation for your inspiration. These custom workstations feature award-winning ProArt motherboards, graphics cards, CPU coolers and chassis, pairing with ProArt displays to accelerate your creative workflow and bring the boldest visions and ideas to life.

Color Management

One of the most important things for creators is color. The top right corner allows easy access to the Color Management feature. This includes the Screen Color Picker and Image Color Extractor that make it simple to get a detailed color analysis and color information, and you can use the Color Palette to build your personal color preferences. You will also find color trends and color palettes created by the professionals at the ASUS Design Center.

WorkSmart

To streamline your workflow, you can select up to 8 apps to be launched at the same time with a single desktop shortcut.

Security Control and Remote Management

Advanced security management functions from ASUS Control Center Express protect the PCs and confidential data in your creative studio.

Upgraded UEFI BIOS

Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

ASUS DriverHub

ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation.

ASUS GlidEx

A cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets and smartphones via USB or WiFi. It is compatible with Windows, macOS, Android and iOS.

Trusted Stability

ProArt X870E-Creator WiFi is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.

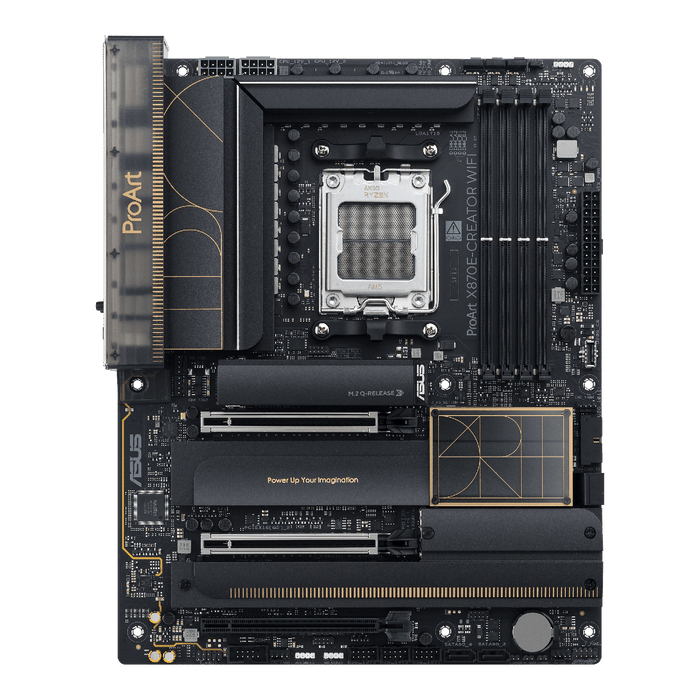

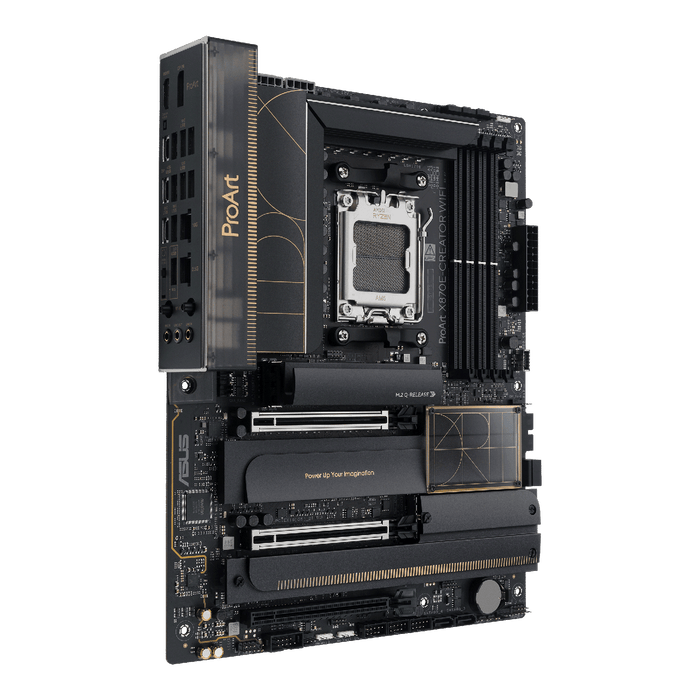

Asus ProArt X870E-CREATOR WIFI ATX AM5 Motherboard
